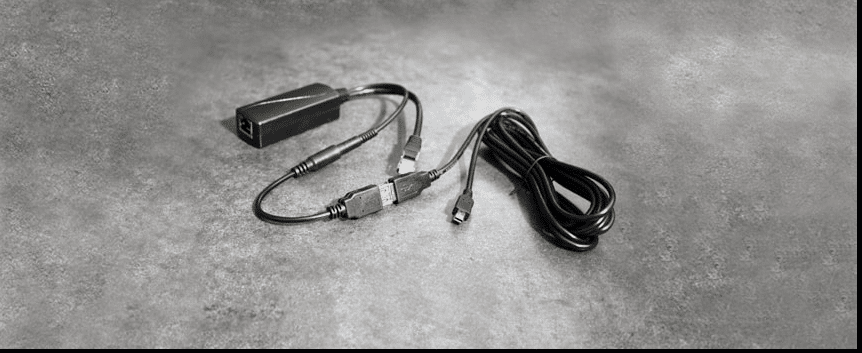

PoE Power Converter Specifications

PoE

• Input: IEEE 802.3af Passive PoE (44 – 56V)
• Method: Active
• Mode/Pinout: Mode A (-1,2 +3,6)/Mode B (+4,5 -7,8)

Power Input

• Connection: Female RJ45
• Voltage: 44 volts to 56 volts

Output Voltage: 5 volts

Data + PoE Ports: 1 (input)

Data Ports: 1

Data Rate: Gigabit

DC Connector: 1.35mm male (power out)

Maximum Amps Per Port: 2A

Adapter Included: 1.35mm to female USB

• Adapter Length: 6.5” (165mm)

Cable Connectors: RJ45 Male, 1.35mm Male DC

• Cable Connector Length: 8.5” (216mm)

Operating Environment

• Temperature: 14°F to 140°F (-10°C to 60°C)
• Humidity: 5% to 90% non-condensing

Dimensions: 1.5”W x 6.0”L x 1.0”H (38mmW x 152mmW x 25mmH)

Weight: 1.0 oz. (28g)

F200 USB A to Mini B Cable Specifications

Connector: USB A Male to Mini B 5pin Male; nickel plated plugs

Cable Length: 10’ (3.05m)

Certifications: RoHS compliant; compatible with USB specifications 1.0, 1.1, and 1.2
