Key Features
- Simple plug-and-play installation and setup
- Web-accessible with a clean, easy to use, mobile-friendly web interface
- Monitors eight dry contact inputs and four temperature or temperature/humidity sensors, plus one zone of leak detection
- Single zone leak detection supports up to 200’ of leak detection sensing cable and/or spot detectors
- USB power – run the F200 from:
- The included wall wart
- The USB port on a computer plugged into a wall outlet (not an undocked laptop)
- A USB hub that provides 500mA of power to the F200 and is powered by an external power supply plugged into a wall outlet
- Multiple alarm notification configurations including audible and visible indicators, integrated web interface, email messaging, and SNMP traps
- Relay output allows for simple control of an external device upon alarm condition
- Modbus output enables simple integration to a Building Management System (BMS)
- Integrated logging and trending – trending data available as a downloadable CSV file
- Timekeeping via RTC or NTP

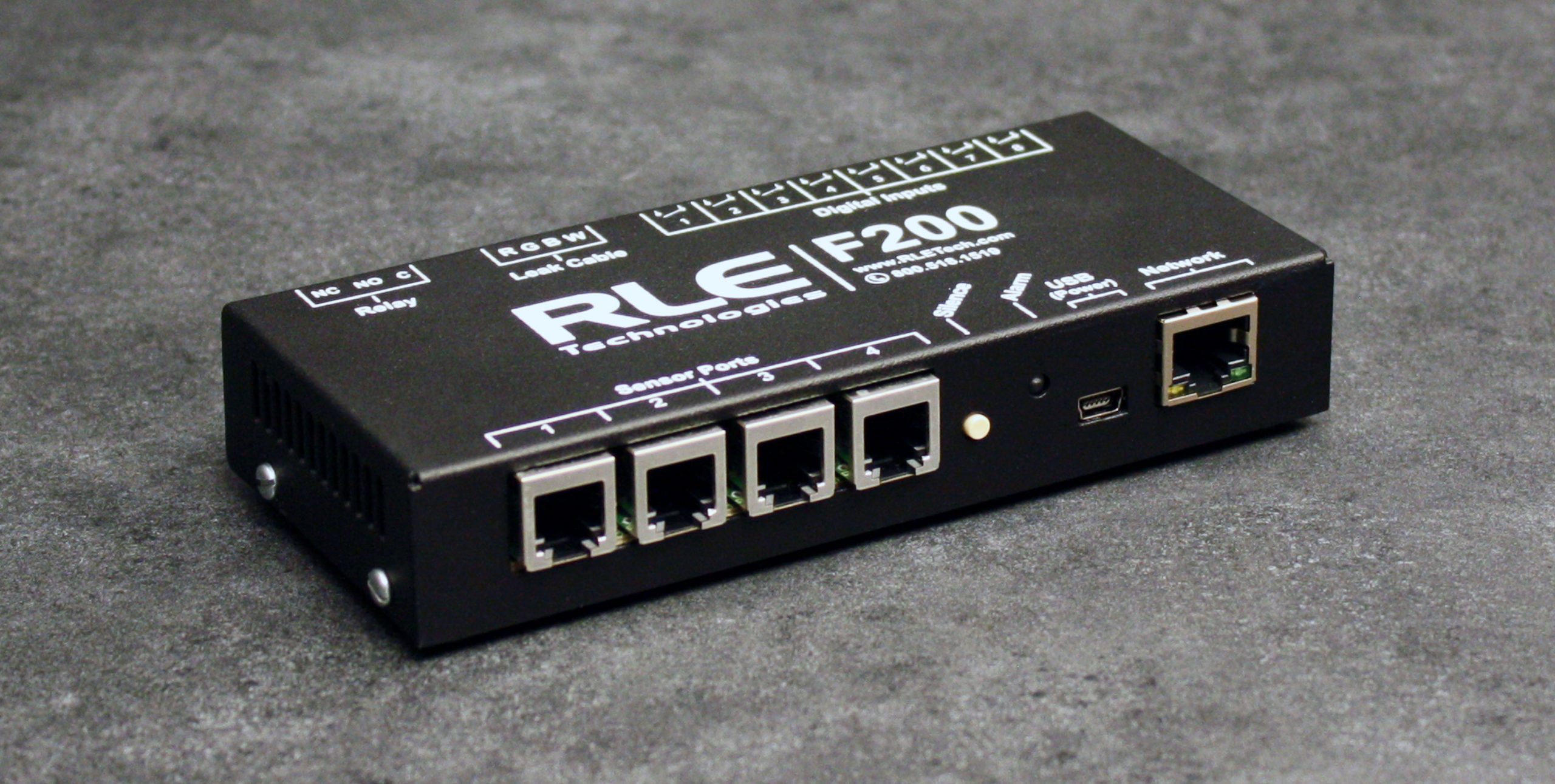

F200 Specifications
Included Equipment: F200 controller; 3.3ft (1m) network cable; 5V USB (Type A) wall wart power adapter with Type C,G, and I blades; USB mini B to USB A cable
Additional Requirements: Digital temperature sensors, digital temperature/humidity sensors, leak detection leader cable, leak detection sensing cable, SD-Z or SD-Z1 spot detectors, end-of-line terminator, rack mount kit, PoE kit (as needed for application)
Power: (US) 5VDC @ 500mA max; 110/240VAC 50/60Hz; Wall adapter (Type A blade) to USB connector, with Type C, G, and I blades for international use (included)

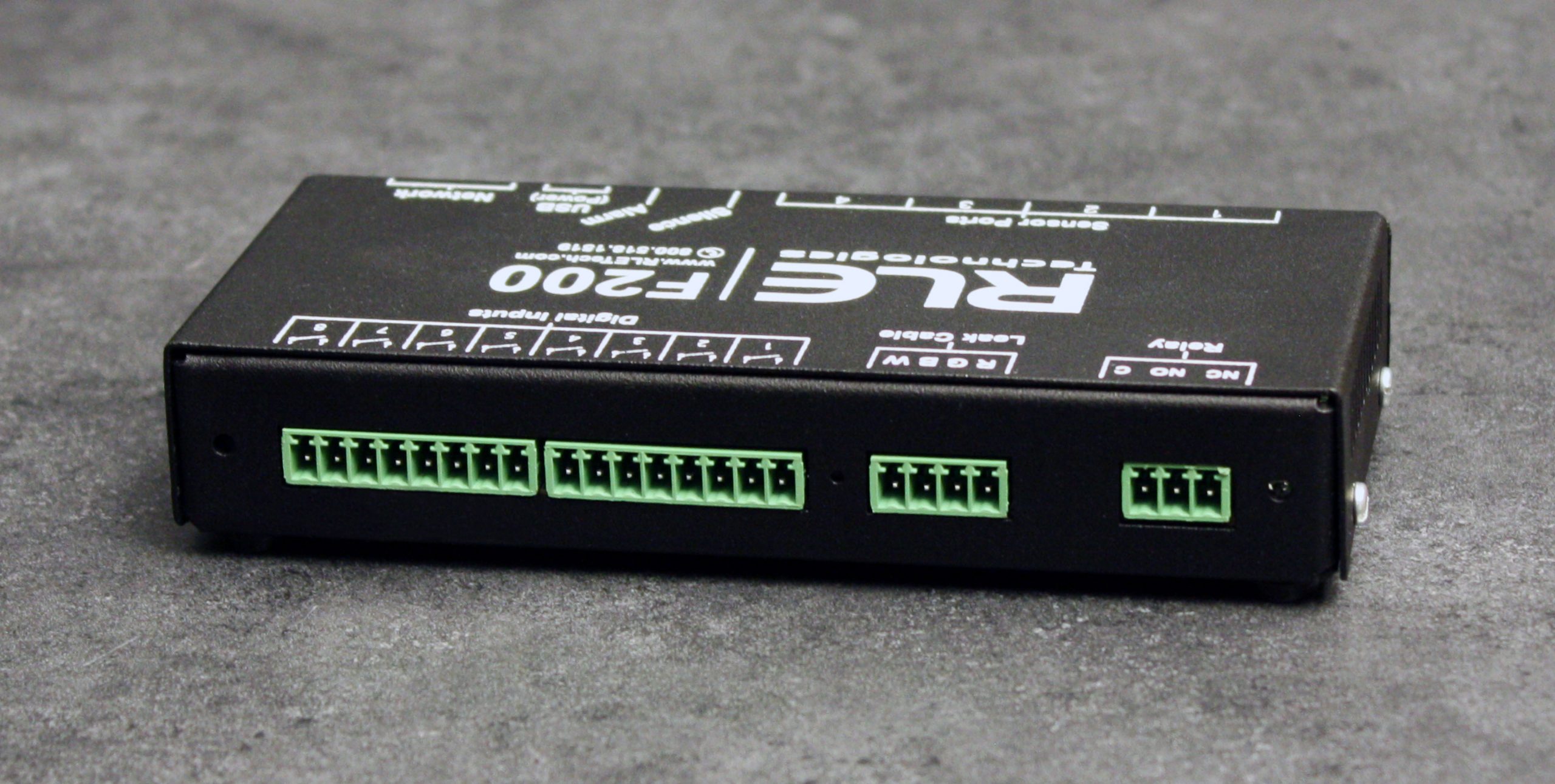

Wired Inputs
- Temperature/Humidity: 4 1-wire digital temperature or 1-wire digital temperature/humidity sensor inputs; RJ11 connectors; plug-and-play; configurable alarm points
- Digital (Dry Contact): 8 digital alarm points; configurable
- Sensing Cable: One zone leak detection, compatible with all SeaHawk sensing cables and SD-Z and SD-Z1 spot detectors
- Cable Input: Requires 15ft (4.6m) leader cable and EOL terminator (not included), or wire one SD-Z1 directly to the F200
- Maximum Sensing Cable Length: 200ft (61m) of conductive fluid sensing cable, or 140ft (43m) of chemical sensing cable
Relay Output: 1 Form C summary relay; 2A @ 30VDC, 0.5A @ 125VAC. Configurable as summary alarm output or manual operation.
Alarm Notification
- Panel: Audible alarm, visible LED
- Integrated Web Interface: Dashboard overview with alarm indicators
- Email: Up to 8 email recipients; email sent on alarm to recipients, distribution list, or email-to-SMS
- SNMP Traps: Multiple community strings
- Relay: 1 Form C summary relay output
Web Interface Login Security: 8 password read only users; 8 password read/write users
Communication Port
- Ethernet: 10/100 BaseT, RJ45 connector; 500 VAC RMS isolation; DHCP capable; Static IP-addressable
Protocols
- TCP/IP: ARP; DNS; UDP; DHCP
- HTML: Supports multiple simultaneous connections
- SMTP (email): SMTP authentication; supports SSLv3 RSA:RC4-128:MD5; up to 8 recipients
- Modbus TCP/IP: Modbus Server; TCP/IP transmission protocol
- SNMP: V1; V2C MIB-2 compliant; NMS Manageable with Get and Traps: V2C Get, V2C and V1 Traps
Timekeeping: Onboard configurable real-time clock (RTC); Network Time Protocol (NTP) capable (internet access required for NTP)
Logging: Logs 50 most recent alarm and return to normal events with date/time stamp
Trending: Records up to 86,400 points of sensor data. Sample interval set from 10 seconds to 1 day. CSV downloadable.
Operating Environment
- Temperature: -13° to 158°F (-25° to 70°C)
- Humidity: 5% to 95% RH, non-condensing
- Altitude: 15,000ft (4,572m) max.
Storage Environment: -40° to 185°F (-40° to 85°C)
Dimensions: 5.63″W x 1.00″H x 2.63″D (143mmW x 25mmH x 67mmD)
Weight: 10.1 oz. (287g)

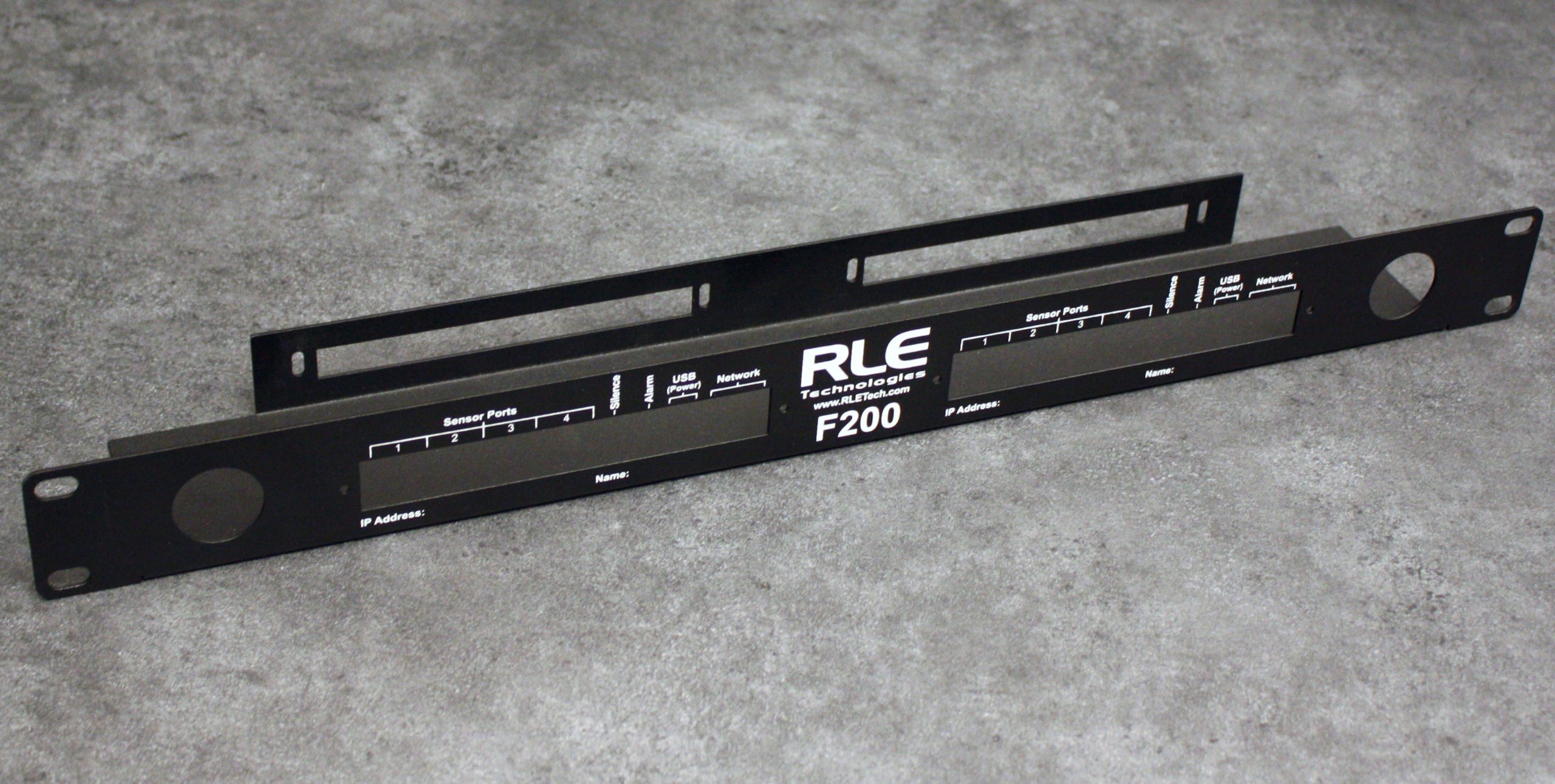

Mounting: Stand alone; keyholes included for wall mount; rack mount bracket available
Certifications: CE; ETL listed: conforms to UL 61010-1, EN 61010-1; certified to CSA C22.2 NO. 61010-1; RoHS compliant
