SD-Z

SKU: SD-Z

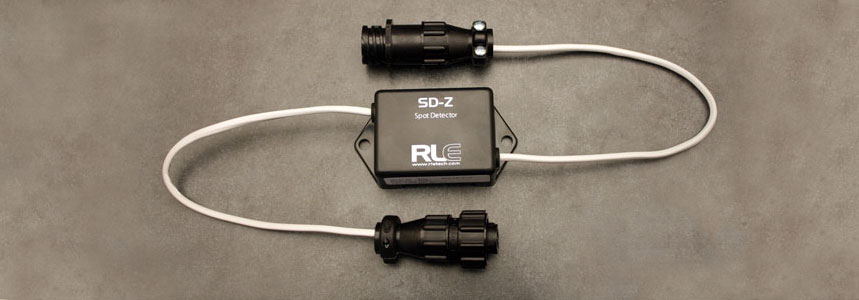

Spot detector; use with any RLE controller.

$156.01

Description

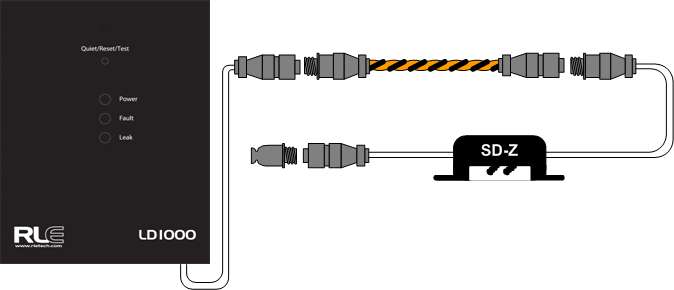

Designed to work with all of RLE’s leak detection controllers, the SD-Z spot detector can be connected to other SD-Z units or to sensing or non-sensing cable.

When used with a distance-read system, the SD-Z simulates 50 feet of cable – 25ft. (7.62m) from the male connector to the SD-Z, and 25ft. (7.62m) from the SD-Z to the female connector.

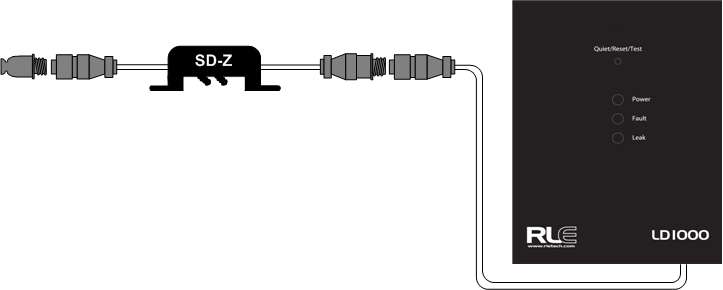

Because a SD-Z cannot connect directly to a controller, an LC-KIT is required for installation.  Most RLE controllers come with an LC-KIT.

Product Documentation Links

Technical Resources

Weight 0.41 lbs
Dimensions 9 × 6 × 2 in

Power: N/A (powered by controller)

Leader Cable (Non-sensing)

  • Length: 10 inches (0.25m); male & female connector
  • Connector: 1 male, 1 female; 4 pin, 0.96in (24.4mm) diameter; connects to SeaHawk sensing cable (SC) cable or non-sensing cable (NSC)

Operating Environment

  • Temperature: 32° to 122°F (0° to 50°C)
  • Humidity: 5% to 95% RH, non-condensing
  • Altitude: 15,000ft (4,572m) max.

Storage Environment:  -4° to 158°F (-20° to 70°C)

Dimensions: 1.55″W x 2.0″H x 1.0″D (39.4mmW x 50.8mmH x 25.4mmD)

Weight: 3 oz. (93g)

Certifications: CE; ETL listed: conforms to UL 61010-1, EN 61010, CSA C22.2 No. 61010-1, IEC 61326:1997; RoHS compliant
